IoT Solution

CDiBox1

The fastest way to make your eBike cool.Let the eBike have anti-theft and positioning functions.

4G Taillight

No need to look left or right when turning,remind the rear when braking,it also has the function of 4G Tracker

IoT module

If you like, you can add it to other products, such as display、cushion、handle、kettle bracket and so on.

Data Analysis

Cumque asperiores ab quasi laboriosam omnis tempor econs ectetur elit.optio illum officiis itaque soluta impedit

Email Marketing

Cumque asperiores ab quasi laboriosam omnis tempo recons ectetur elit.optio illum officiis itaque soluta impedit

Marketing Analysis

Cumque asperiores ab quasi laboriosam omnis tempo recons ectetur elit.optio illum officiis itaque soluta impedit

Digital & Mobile

Cumque asperiores ab quasi laboriosam omnis tempor econs ectetur elit.optio illum officiis itaque soluta impedit

Marketing

Cumque asperiores ab quasi laboriosam omnis tempo recons ectetur elit.optio illum officiis itaque soluta impedit

Planing

Cumque asperiores ab quasi laboriosam omnis tempo recons ectetur elit.optio illum officiis itaque soluta impedit

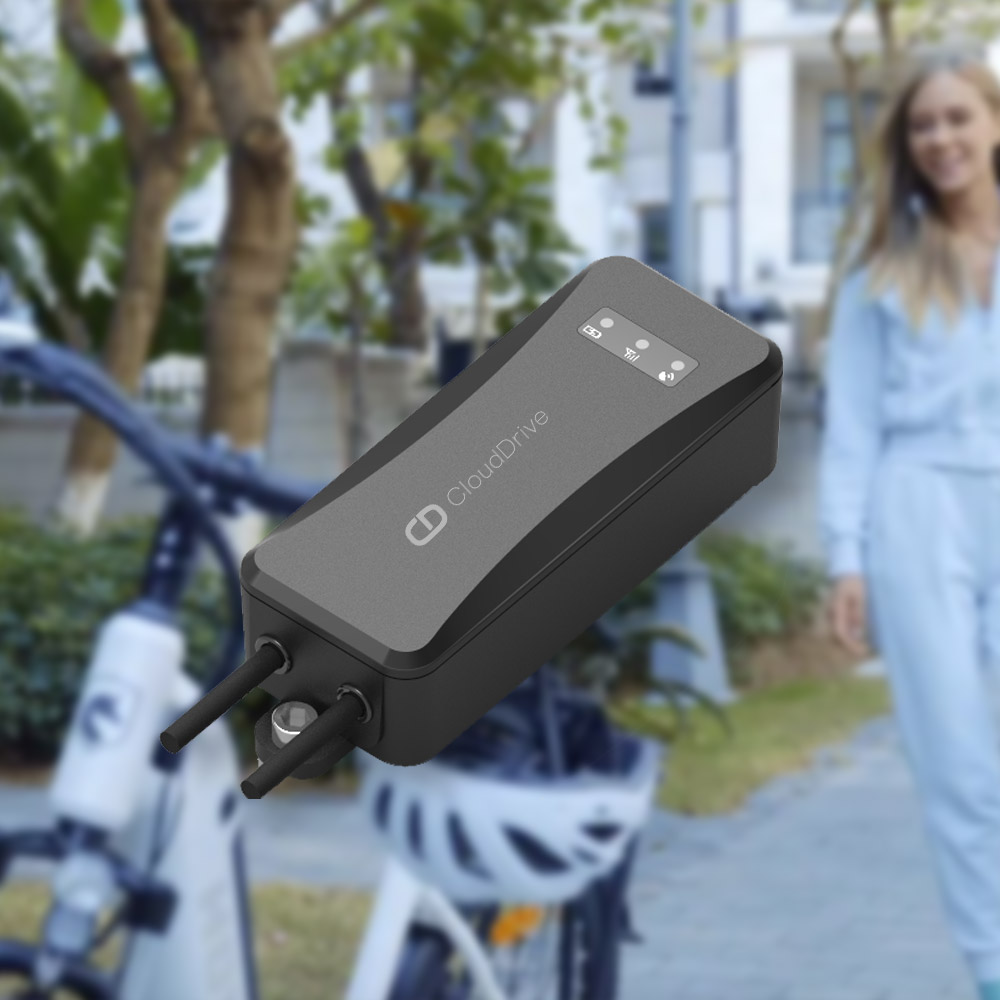

CDiBox1

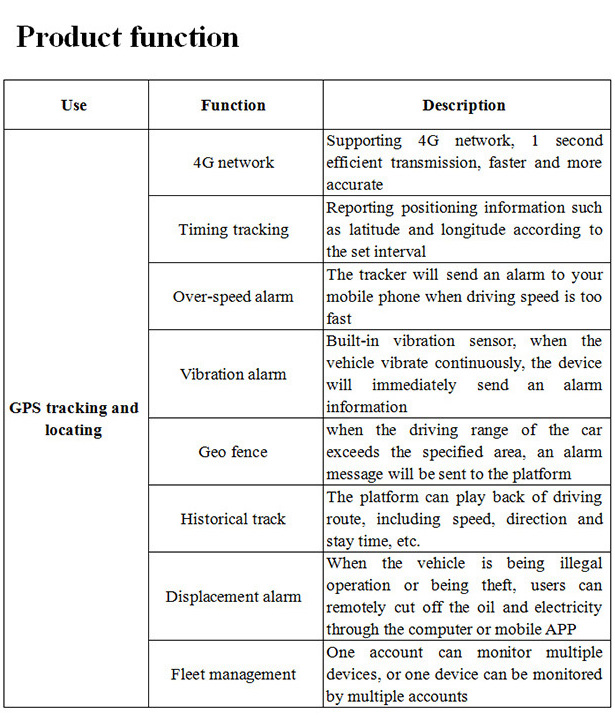

Help customers realize functions such as remote tracking, monitoring and locating of vehicles, enhance safety and effectiveness of fleet management and reduce losses caused by stolen vehicles

GPS Theft protection

When the bike is moved or vibrated in the locked state, will receive a prompt.

Easy instructioins

Small size can be quickly and flexibly installed into the vehicle frame pipe

Historical route

Keep records for three months

These services free for the first year.

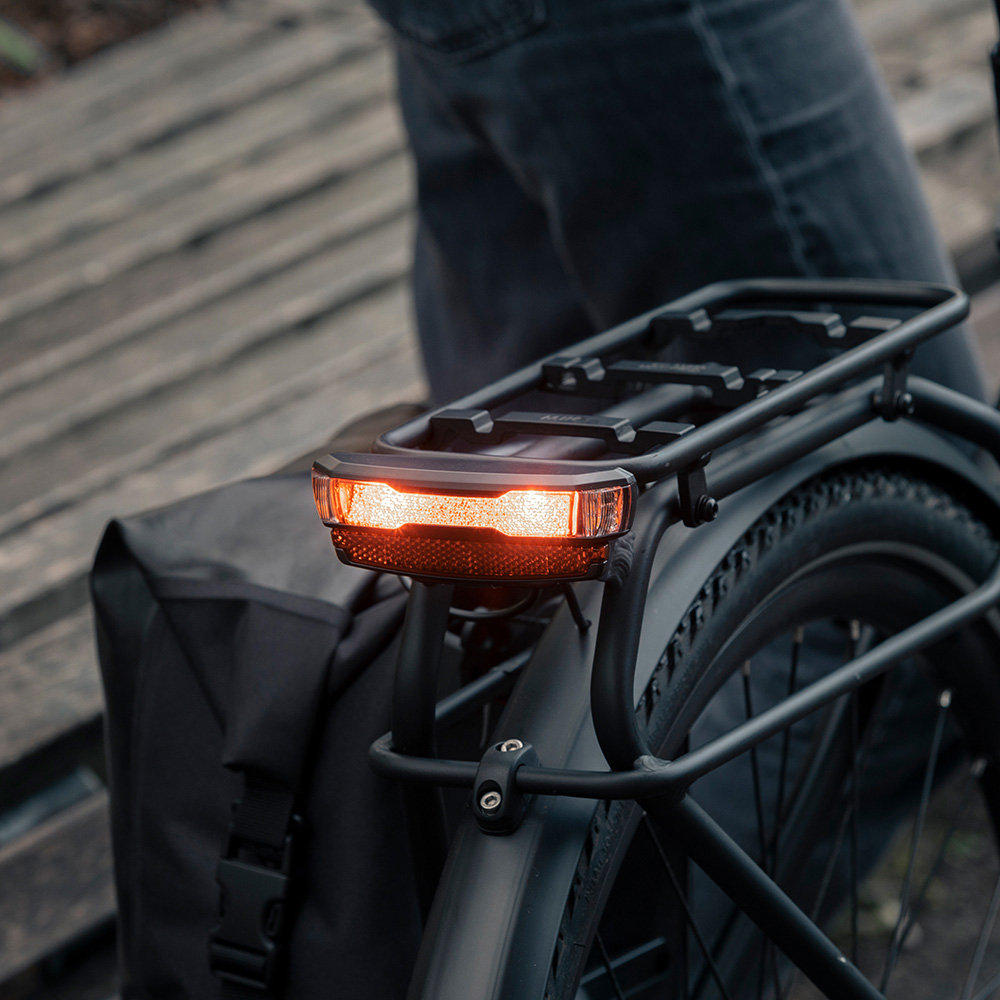

4G Tailight

Actually,it is the combination of rear-light and IoT Module.So it is no longer an ordinary lamp.You can control the smart turning signal device romotely,delivering left/right turning,parking and brak light warnings to the vehicles whick driving behind,keeping your outdoor riding safe.

All tracker functions

Due to include IoT Module inside,so all the functions of the 4G tracker are the same in this product.

Indicator functions

Red waring light

Yellow left/right turning light

Parking light

Brake light

Product parameters

Approval standards:CE\ROSE

ISO:ISO-6742-1

IP Grade:IP65

Battery Capacity:2400mAh

Backup Battery

Integrated dynamic power path management, which uses the vehicle power when it's turned on or riding, automatically switches to the backup battery when flat.

IoT Module

If you like, you can add it to other products, such as display、cushion、handle、kettle bracket and so on.

Product parameters

PCB Size:47.6*25*5mm

Communication Band:CAT1

LTE-FDD:B1/B3/B3/B8

LTE-TDD:B34/B38/B39/B40/B41

SIM Card:Standard SIM Card

Position Method:GPS+BEIDOU

GPS Precison:10M (2D RM)

Cold start≈38s(Open sky)

Warm start≈32s

Hot start≈2s(Open sky)

Working temperature:-20℃~70℃

Charging Input:DC 5V 1A

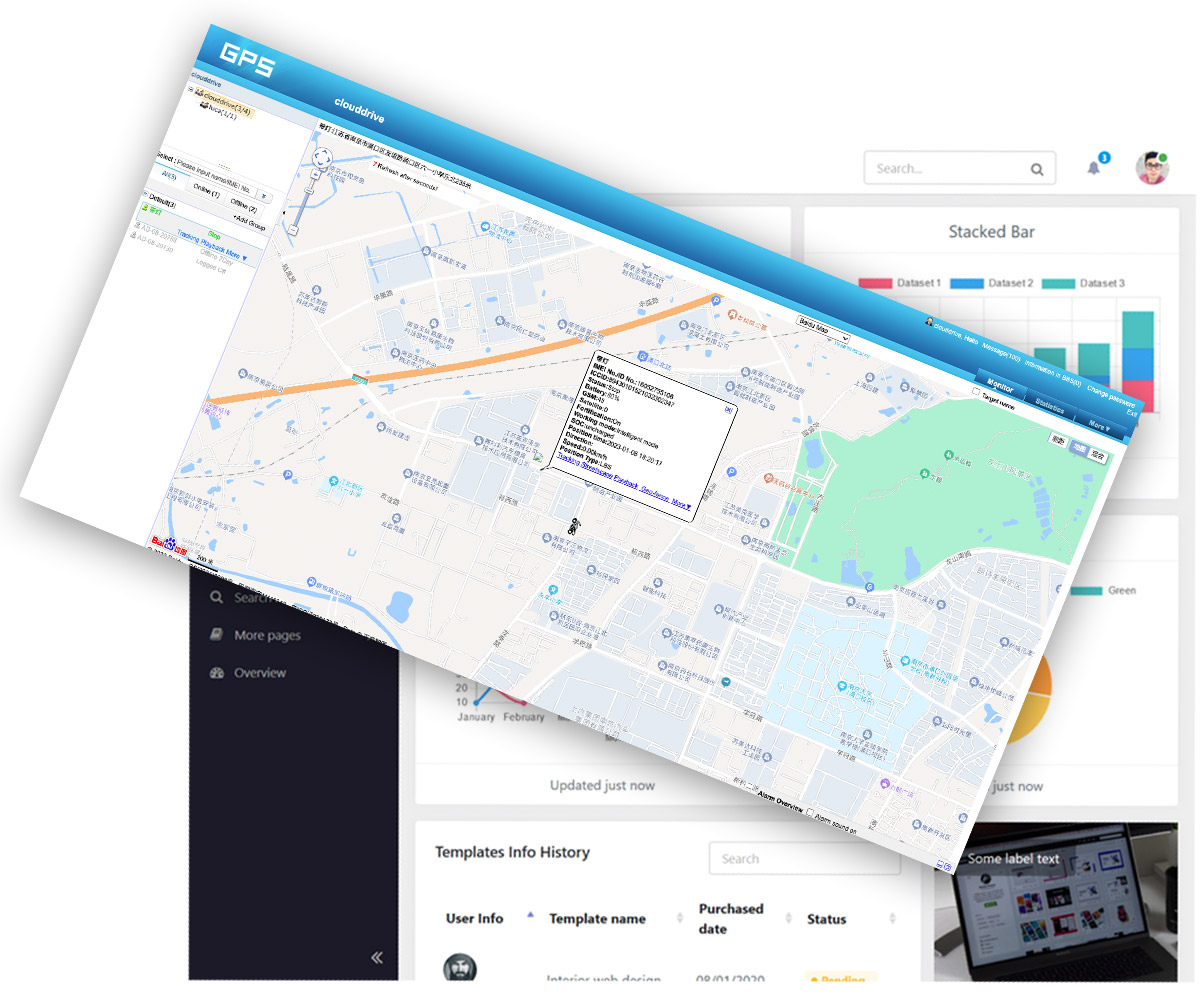

IoT Platform Functions

Admin Platform:Browser

End user:IOS/Android

Inventory management

Vehicles management

Dealers management

End user management

Usage analysis

Historical route

FOTA firmware upgrade(PLAN)

Social interactions(PLAN)

IoT Platform

Select the platform scheme according to the situation of your business.

Make your eBikes join ioT

Cloud drive

Information

support@ebikes.tech

3rd Floor, Building 1, Bajian Kechuang Park, No. 9 Julong Road, Pukou District, Nanjing

Jiangsu Province, China

CDiBox1

4G Taillight

IoT module

Data Analysis

Email Marketing

Marketing Analysis

Digital & Mobile

Marketing

Planing

WOW! As an optional product , just a small change makes your eBikes a big difference!

CDiBox1

GPS Theft protection

Easy instructioins

Location of your eBikes

Alarm

Secure data

Historical route

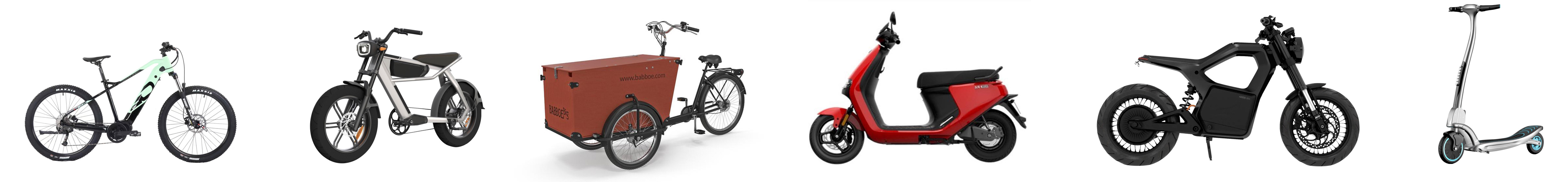

CDiBox1 Application Area
